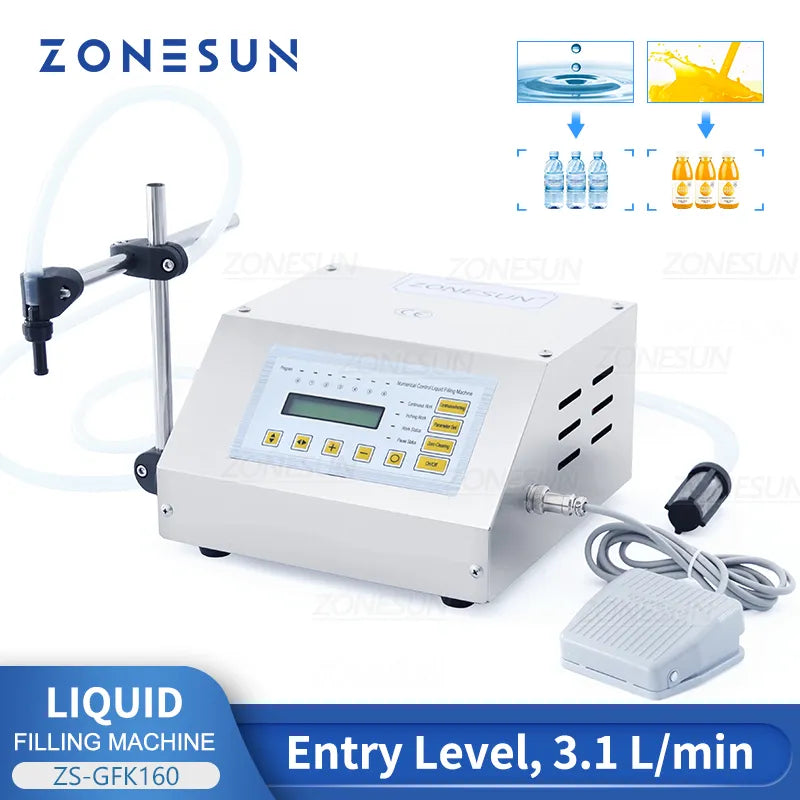

ZONESUN GFK160 Numerical Control Perfume Juice Oil Filter Beverage Mineral Water Bottle Liquid Filling Machine Packing Machine
ZONESUN GFK160 Numerical Control Perfume Juice Oil Filter Beverage Mineral Water Bottle Liquid Filling Machine Packing Machine
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
Brand Name: ZONESUN
Origin: Mainland China
Model Number: GFK-160
Certification: CE
After receiving the product, the user must discharge the air in the hose so it can operate properly.
DESCRIPTION

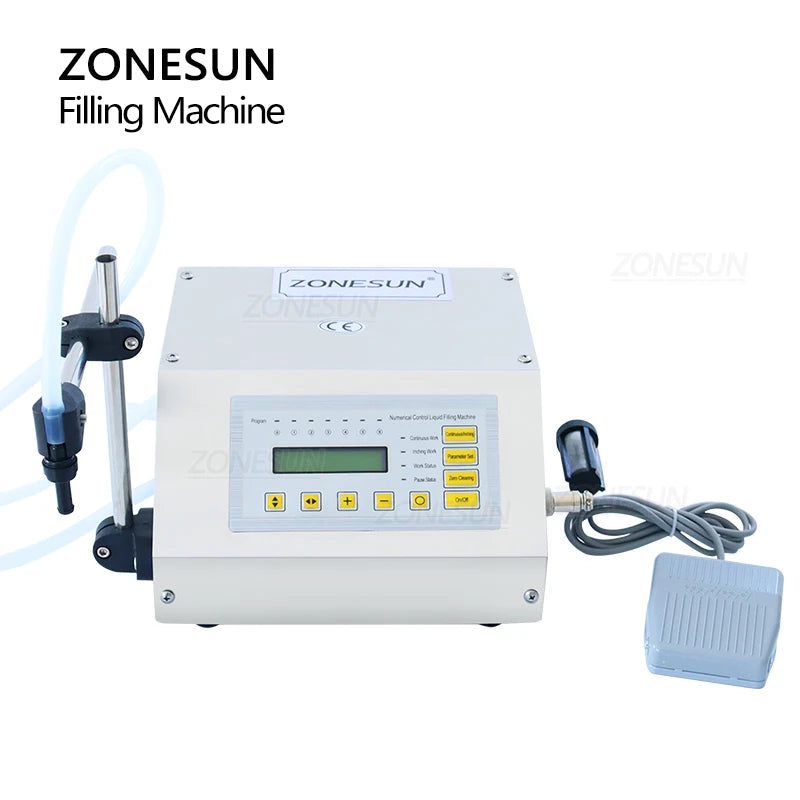

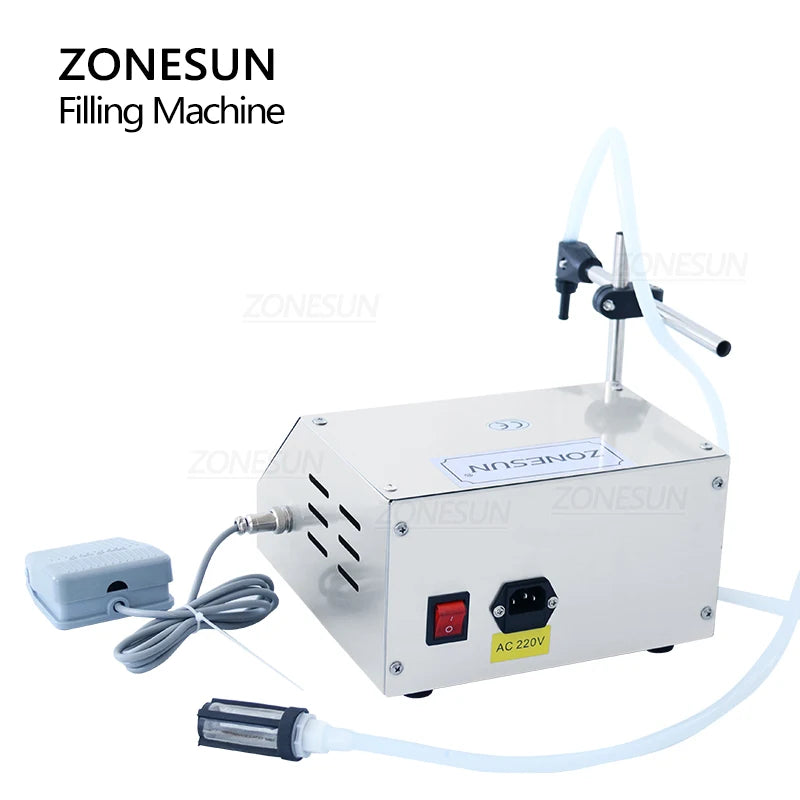

1. This numerical control liquid filling machine is compact and portable. The casing is made of stainless steel, making it durable and easy to clean. The machine has a self-prime pump. It can fill many types of thin liquid, including water, olive oil, fuel, drinks, vinegar, milk, etc.
2. Suitable liquid: low viscous liquid like water, wine, solutions, etc.
Unsuitable liquid: very thick liquid (sauce, detergent, etc), or liquid containing small particles.
PARAMETER
ZS-GFK160 |
|
Voltage Power |
AC 220V,110V 50/60Hz 40W |
Recommended Filling Range |
≤500ml |
Max Flow Rate |
3.1L/min (water) |
Diameter of Filling Nozzle |
Φ 8mm |
2m |
|
Margin of Error |
±≤0.5% |
Anti-dripping Function |
Available |
|
Memory Function Without Electricity |
Available |
Suitable Soft Tube |
17# (interior diameter: 6.4mm, thickness: 1.6mm) |
Packing Size |
325*275*180 |
Gross Weight |
2.75kg |
ATTENTION
1. The tubes can be made of different materials. The tube for this machine is a silicone tube.
2. We will test all of the machines before shipment, so, normally, there is water left in the machine pump and the tube when you receive it.
We have upgraded this machine. The dimension is smaller than the old model. Functions are the same. Please notice that customers from USA and RU may receive the old model as we ship them randomly.

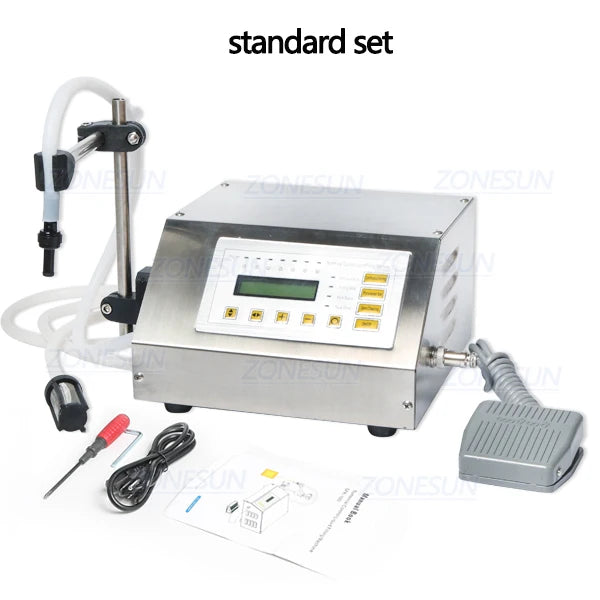

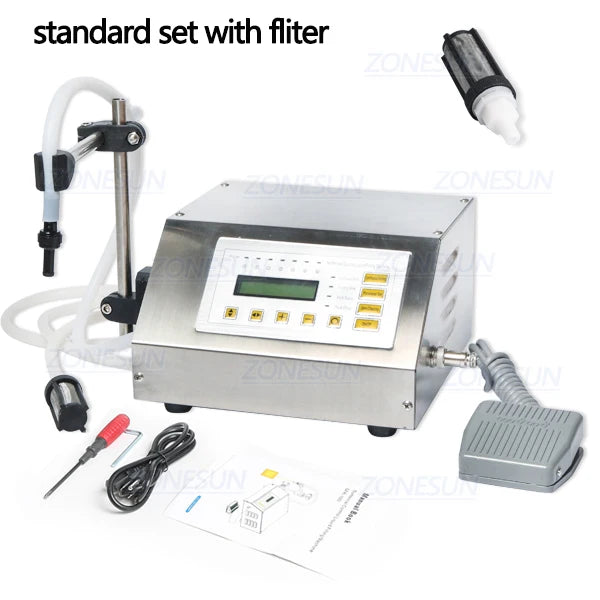

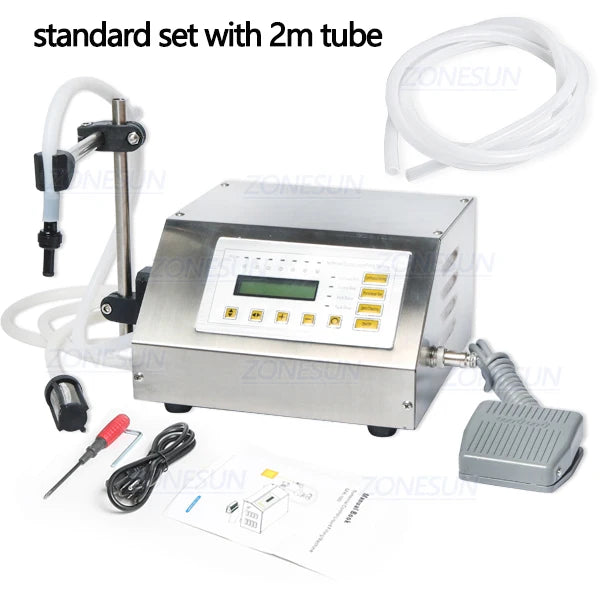

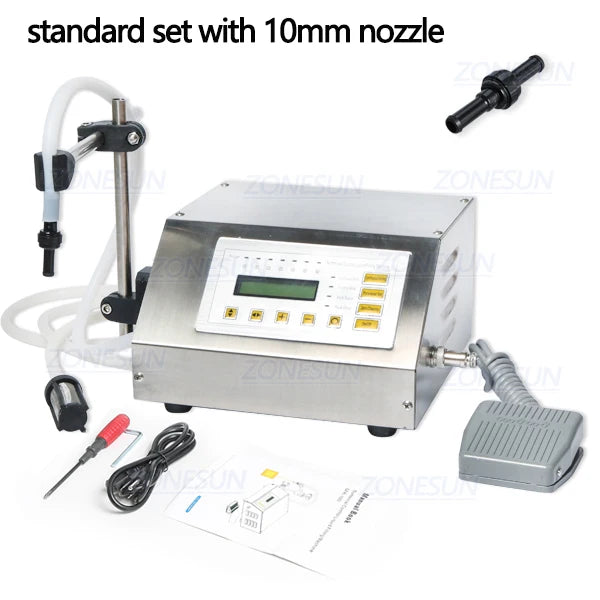

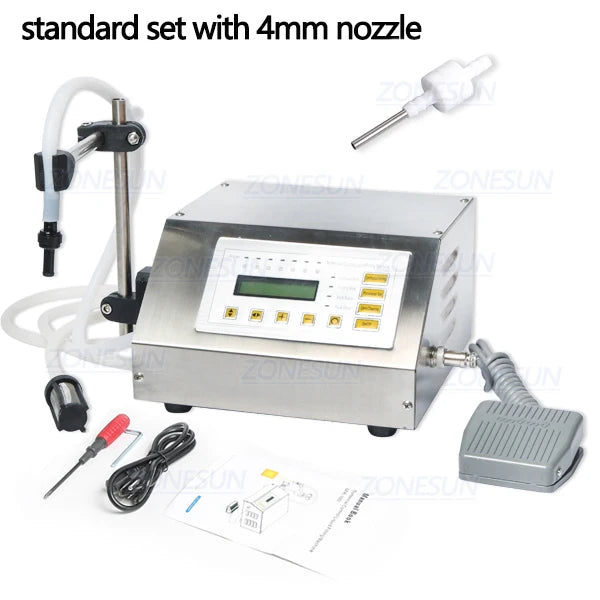

Packing List
|
1.Power Cord 1pcs |
6.Screwdriver 1pcs |
|
2.Pedal Switch 1pcs |
7.Inner hexagonal wrench 1pcs |
|
3.Filling Stand 1pcs |
8.Manual Book 1pcs |
|
4.Filter 1pcs |
9.Guarantee Receipt 1pcs |
|
5.Filling Nozzle 1pcs |
10.Quality Certificate 1pcs |
Installation

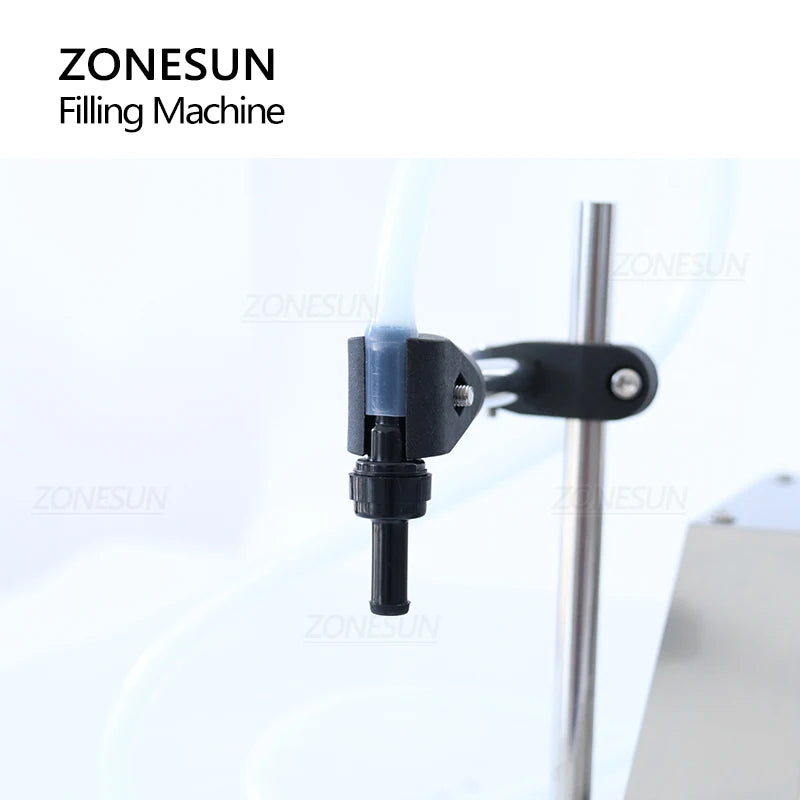

Take the plastic filling nozzle out and install it in the feeding tube. (Notice the triangle head connects the discharge tube). Take out the filling-head stand and install it on the left of the machines. Put the filling head in the clip and tighten it by socket wrench.

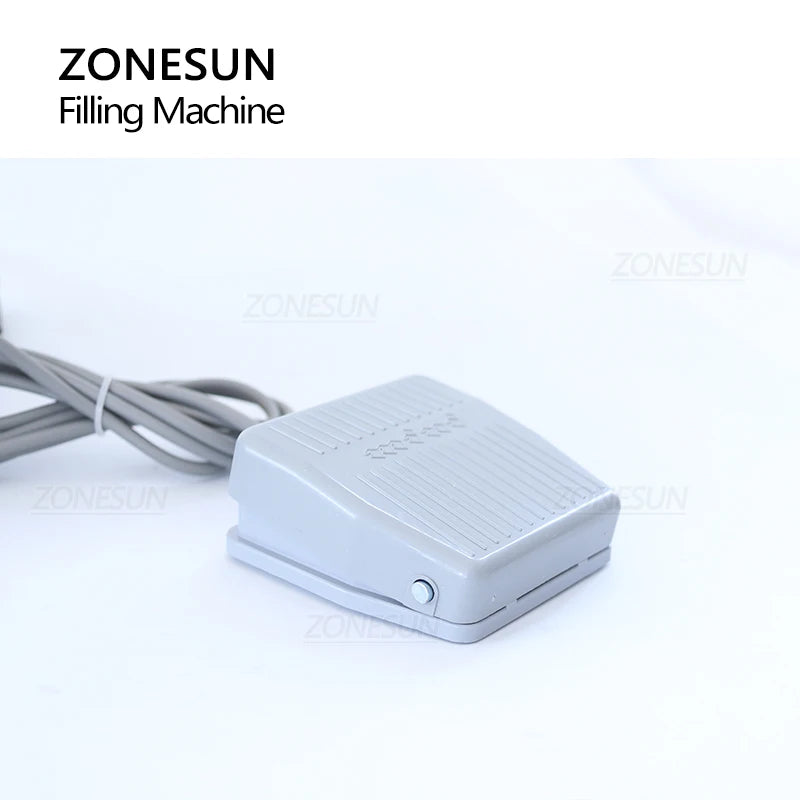

Connect the pedal switch with machine, and put the tube with filter below the liquid level inside the storage rank. The position of tank should be lower than the machine. Start to test the machine after all is ready.
